Overview

The series of pumps are multistage centrifugal pumps of horizontal, volute and horizontal open type. The design standard is API 610 11th and API code is BB3.

The series of pumps are of single-shell, central support structure. The impeller is symmetrically arranged and the axial force is automatically balanced. There is no complicated balancing device, and it is safe and reliable when conveying medium containing particles.

Application Range

This series of pumps are mainly used in petroleum exploitation, petrochemical, chemical, coal chemical, pipeline transportation, seawater desalination, power plants, etc. It can also be used in gray water pumps and methanol-lean pump in coal chemical industry, high-pressure hydraulic energy recovery turbine in the chemical industry, and lean liquid pump and rich liquid pump used in fertilizer and ammonia plant, and so on.

Pumps are used in typical operating conditions, such as boiler feed water at power plant, decoking and phosphorus removal at steel plant, oilfield water injection and other high pressure applications. .

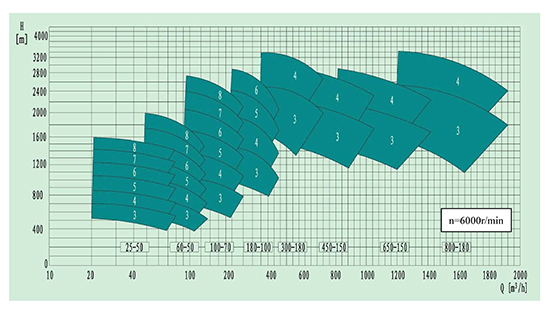

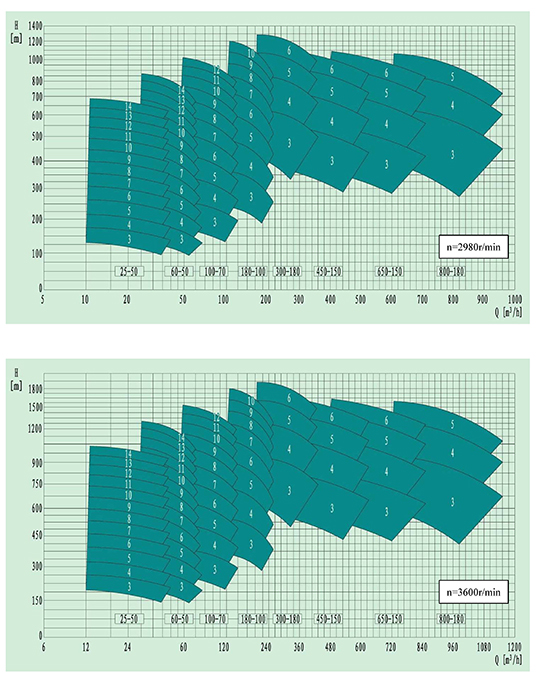

Performance Range

Flow range: 10~1500m3/h

Head range: ~3000m

Applicable temperature: -40~200°C

Design pressure: ~35MPa

Design speed: ~6000r/min

Structural Features

① The first-stage impeller is of suction design, and it has good cavitation performance. The impeller is placed back to back, so the axial force is automatically balanced without the balance mechanism in complicated structure. This simplifies the pump structure and facilitates the transportation of medium with solid particles.

② Pump inlet and outlet are arranged on pump body. Pump can be disassembled by simply opening pump cover, leaving pump body stand by without removing the inlet and outlet pipelines. The maintenance is simple and convenient.

③ Bearings can adopt self-lubricating sliding bearing structure and forced lubrication bearing structure depending on shaft power and speed.

④ All friction pairs are made of materials with high hardness and wear resistance, so they are not easy to bite. Rotating sleeves and ring are hardened on surface, not only ensuring high hardness and hardness difference, but also being difficult to bite. It is suitable for conveying solid-liquid two-phase medium and reducing erosion of particles. Pump life and reliability are guaranteed.
