Overview

This series of pumps is a new single-stage, single-suction, cantilevered self-priming centrifugal pump, and it is independently developed by our company. The design standard is API610 11th.

This series of pumps has the characteristics of strong self-priming ability, short self-priming time, long service life, stable operation and good anti-cavitation performance.

Pump structure is simple and reliable, and the installation and maintenance are convenient.

Application Range

This series of pumps are mainly used in chemical industry, petroleum industry, oil refinery, liquid tank pumping, tank unloading, sewage pumping, automatic control engineering and so on. It can transport a variety of clean medium or other medium containing traces of particles, flammable, explosive and highly corrosive.

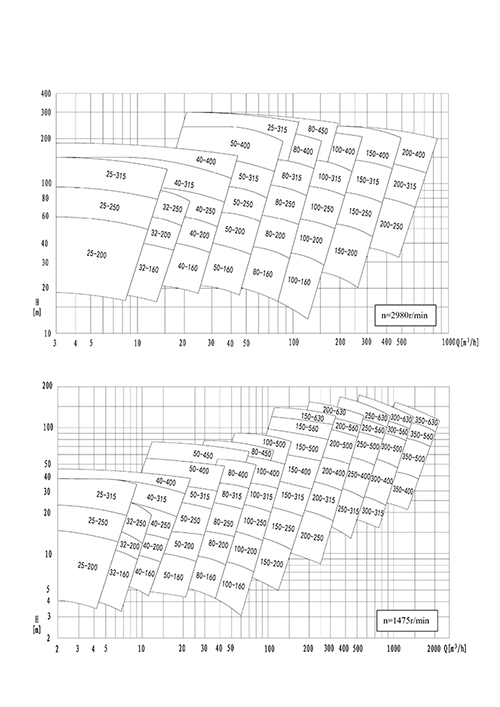

Performance Range

Flow range: ~2000m3/h

Head range: ~160m

Applicable temperature: -40~180°C

Design pressure: 2.5MPa

Self-priming height: ~8m

Structural Features

① Strong self-priming ability; self-priming height up to 7-9 meters

② Short self-priming time, 10-15 seconds to complete the self-priming process

③ No bottom valve required for pump inlet, no liquid tank

④ Compact and simple structure, small footprint and easy maintenance

⑤ No complicated circuit control system
