Overview

This series of pumps is cantilevered centrifugal pump of horizontal, single-stage, single-suction, radial split design. The design standard is GB/T 13008.

This series of pumps is designed to digest and absorb the hydraulic and structural design of advanced products at home and abroad. It has the characteristics of simple structure and convenient maintenance.

Application Range

This series of pumps is widely used in the forced circulation of various easily crystallized saturated solutions in the evaporation and concentration devices in salt, alkali, citric acid and bright powder industries.

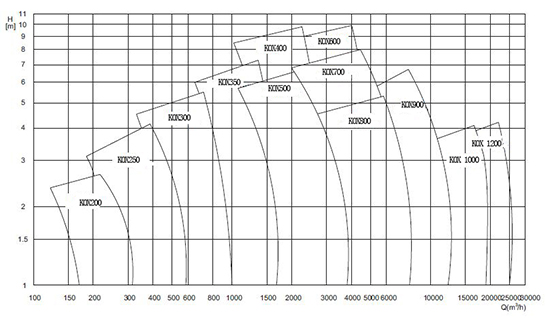

Performance Range

Flow range: 260~16000m3/h

Head range: 2.5~5.5m

Applicable temperature: 0~180°C

Pressure: 1.0MPa

Structural Features

① The pump body adopts a casting structure, and a welded structure can also be used. The welded structure is suitable for low carbon steel and austenitic steel.

② There are two plan designs: axial suction and radial discharge or radial suction, axial discharge. They are designed to meet various process pipeline arrangements.

③ The bearing is lubricated with thin oil and has a cooling device to cool the oil to improve the working environment of the bearing.

④ It can be configured with any mechanical seal, flushing and cooling scheme that complies with API 682 standard, and can also be fitted with a packing seal.

⑤ According to different speed requirements, choose pulley drive or direct drive.
